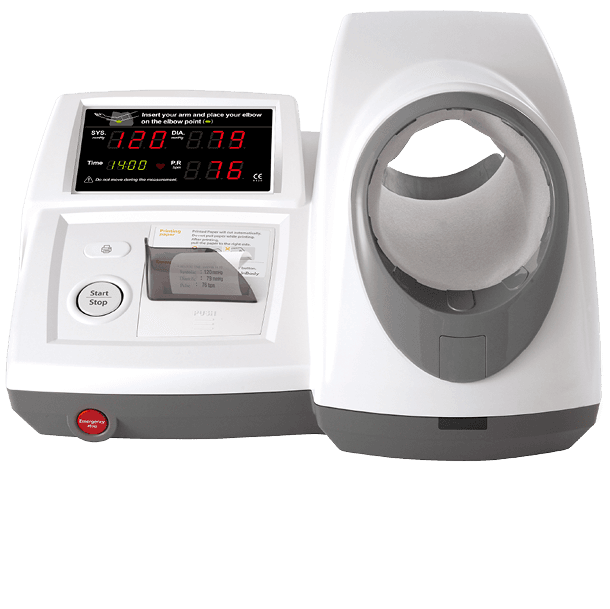

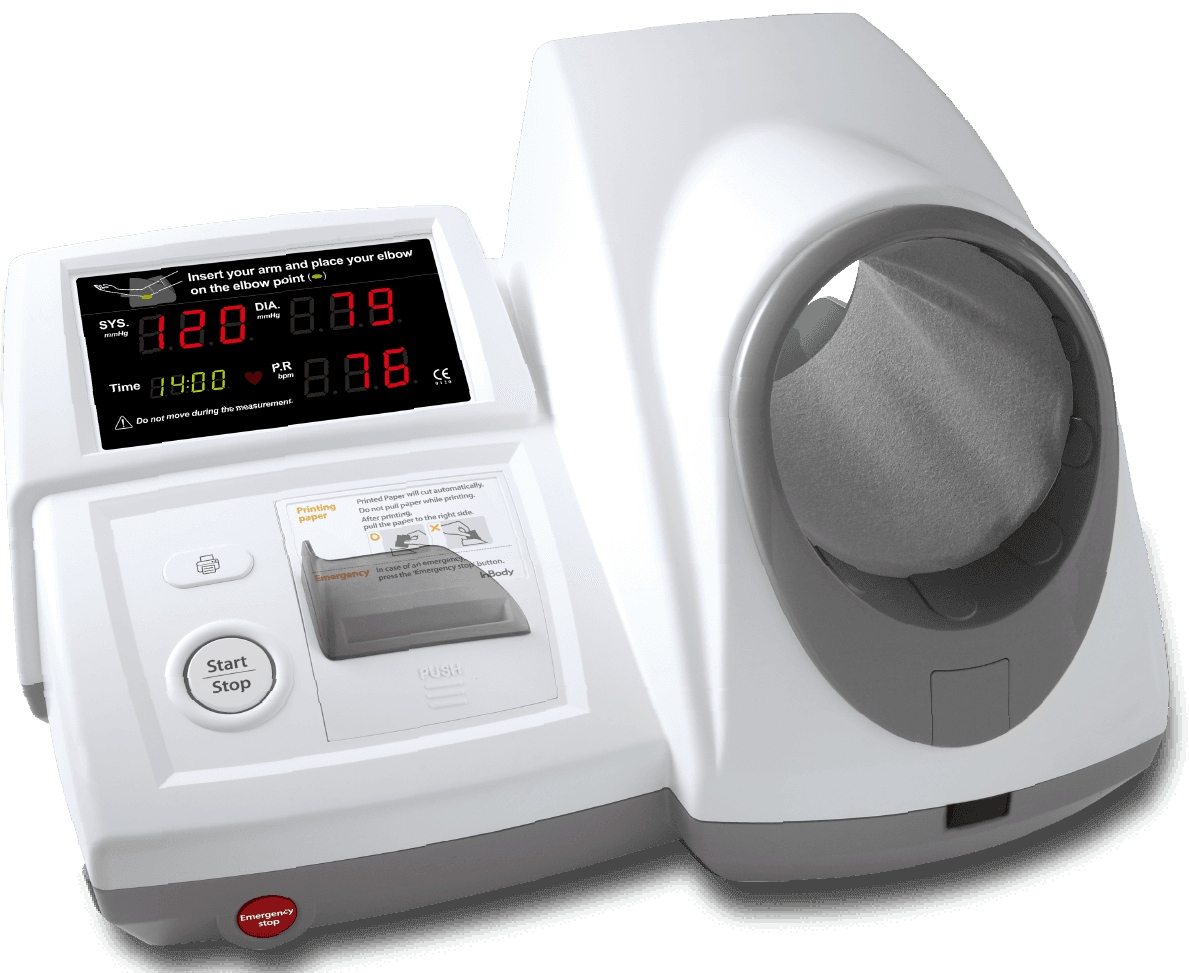

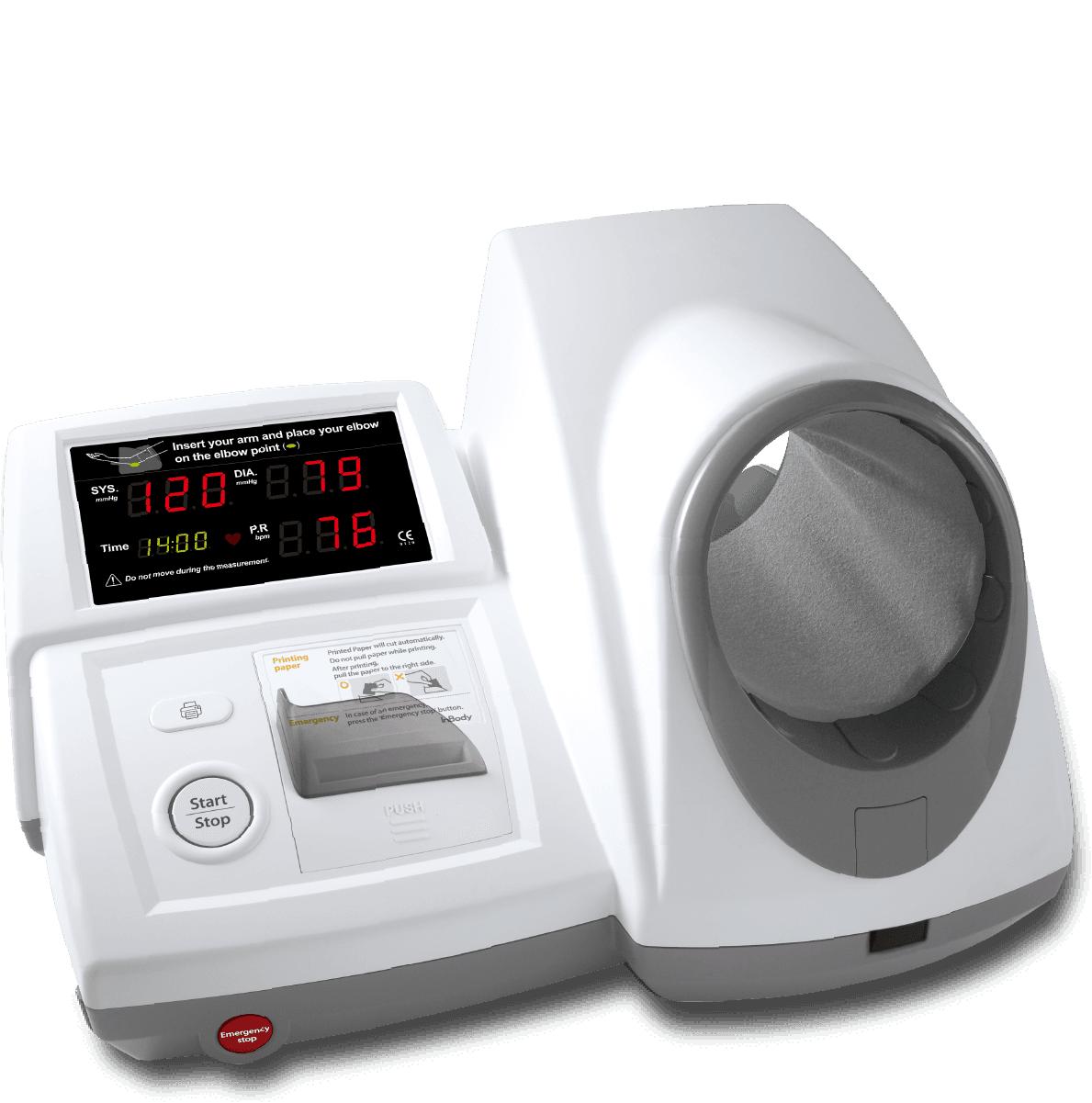

Clinically Validated Blood Pressure Monitor

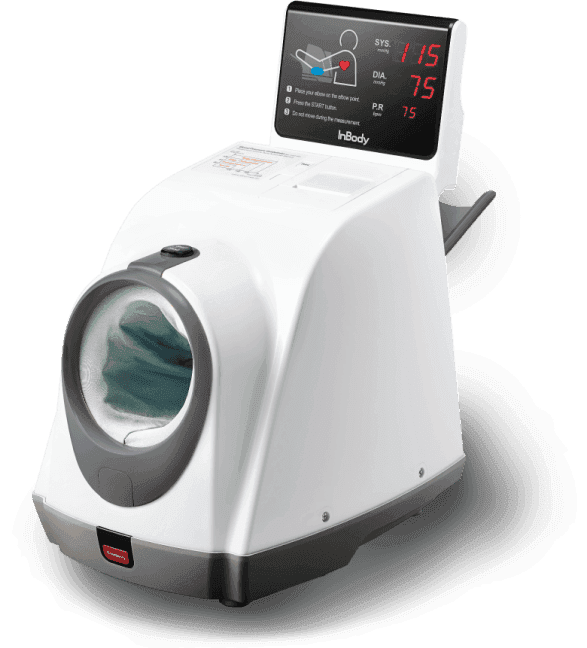

BPBIO 320S

Automatic, Non-Invasive Blood Pressure Measurement

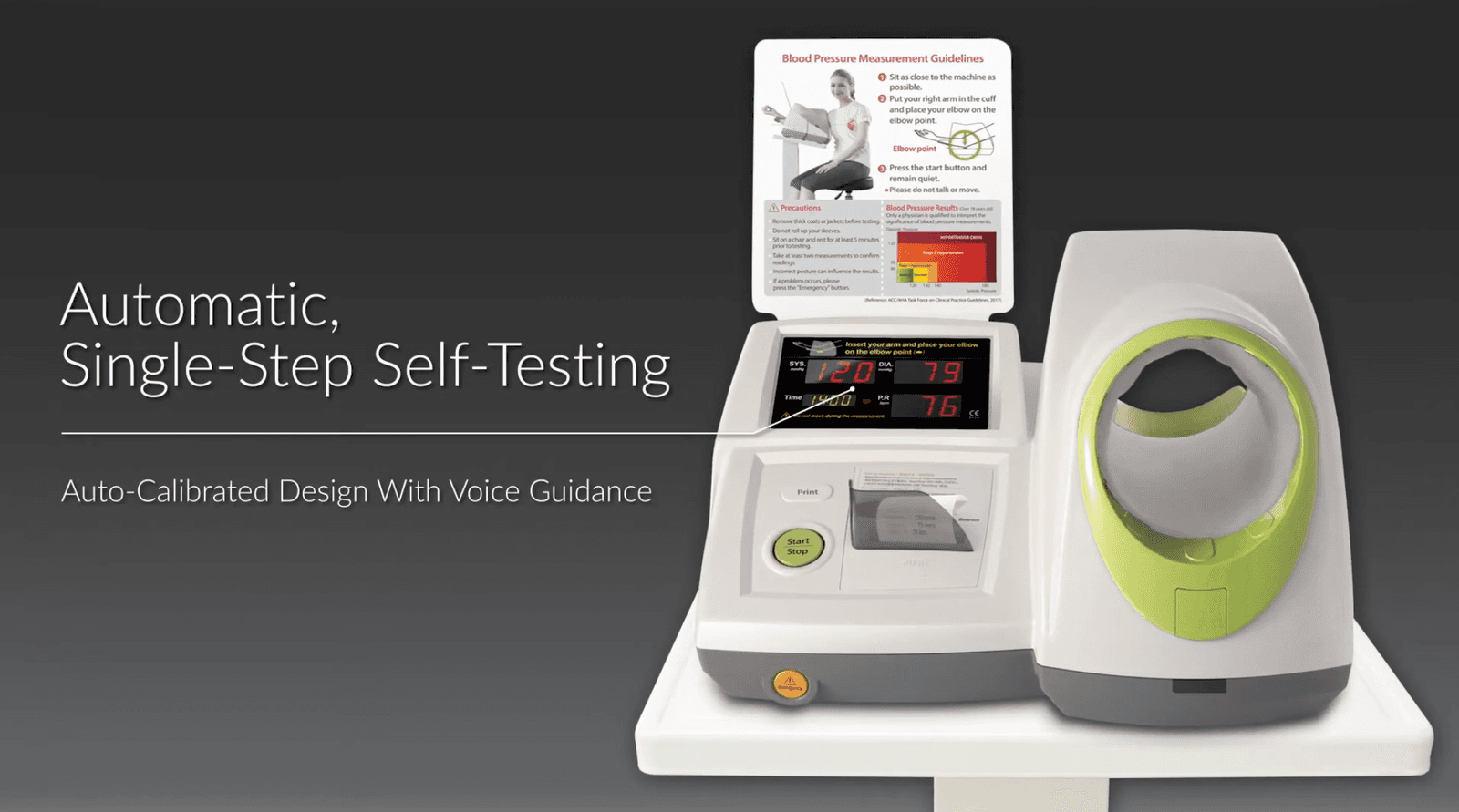

The BPBIO 320S is an accurate, fully automated and
easy-to-use blood pressure monitor. The monitor
features a voice-guided, single-step measurement
process and an elbow sensor that allows you to be in
the ideal position for testing.

These technologies ensure that you follow proper
testing protocols each time for accurate readings.

Clinically Validated Blood Pressure Monitor

BPBIO 320S

Automatic, Non-Invasive Blood Pressure Measurement

The BPBIO 320S is an accurate, fully automated and
easy-to-use blood pressure monitor. The monitor
features a voice-guided, single-step measurement
process and an elbow sensor that allows you to be in
the ideal position for testing.

These technologies ensure that you follow proper
testing protocols each time for accurate readings.

“The single-cuff oscillometric device InBody BPBIO320 developed for self-measurement by adults in public spaces passed all the validation requirements of the 2010 ESH-IP and can be recommended for clinical use.”

Kollias, A., Stambolliu, E., Kyriakoulis, K. G., Papadatos, S. S., & Stergiou, G. S. (2019). Validation of the single-cuff oscillometric blood pressure monitor InBody BPBIO320 for public use according to the 2010 European Society of Hypertension International Protocol. Blood pressure monitoring, 24(1), 30-32.

How can the BPBIO 320S optimize your services?

Clinical Accuracy

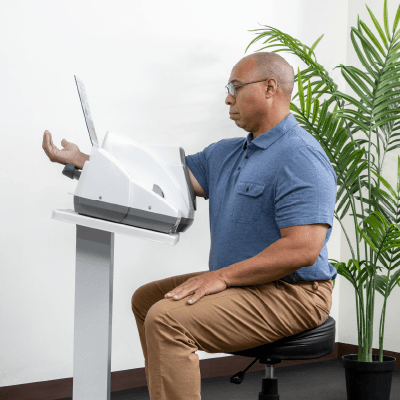

The clinically validated BPBIO 320S features an ergonomic elbow groove and adjustable stool that puts users in the ideal position for accurate, precise results every time.

Convenient & Contact-Free

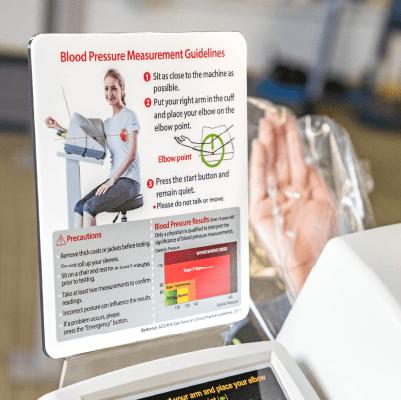

The BPBIO 320S is auto-calibrated, space-efficient, and portable for convenient measurement with minimal effort. To enhance sanitary testing conditions, the BPBIO 320S is available with a disposable cuff barrier and contact-free testing guidelines.

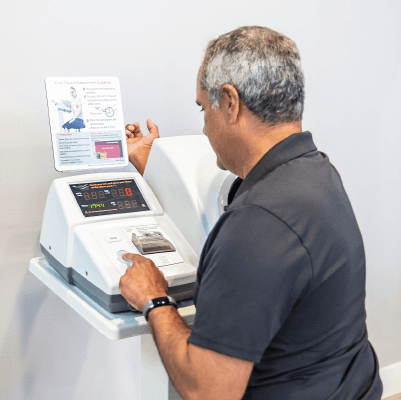

Quick Self-Testing

With an intuitive design and voice guidance, users can measure their blood pressure in 45 seconds with the touch of a button. Choose from four result receipts with up to seven outputs and a test history Result Sheet for easy tracking.

Ask us how you can get started today.

Live outside the United States? Please direct your inquiry here.

After I did my research and understood how obesity was tied to hypertension, providing blood pressure monitoring was a no brainer. But I didn’t do it because I didn’t have the technology. When I got introduced to the BPBIO, I thought, 'Wow, another added-value piece I can bring to the table.' It’s user-friendly, stationary, portable, and it doesn’t take up a bunch of space. I can set it up either in the lounge, lobby, etc for the convenience of the employees.

Alex HixonOwner of Rural Mobile Health and Wellness

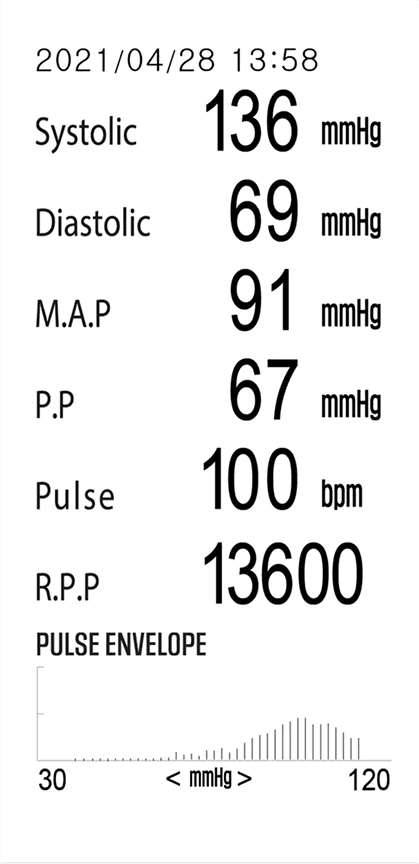

Explore the Result Sheet

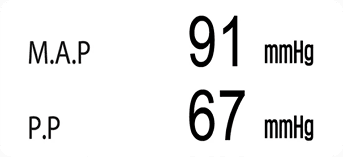

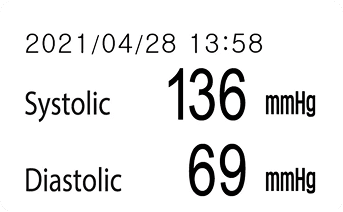

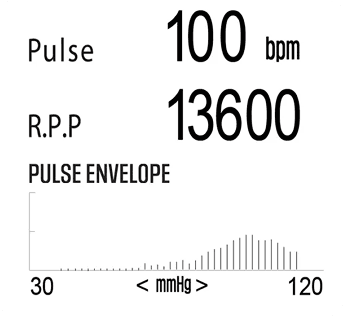

The clinically validated BPBIO 320S records a user’s systolic and diastolic blood pressure, mean arterial pressure, pulse pressure, pulse, and rate pressure product.

Blood Pressure Reading available on the Result Sheet

Your Business and the BPBio

What would it look like to own one in your facility?

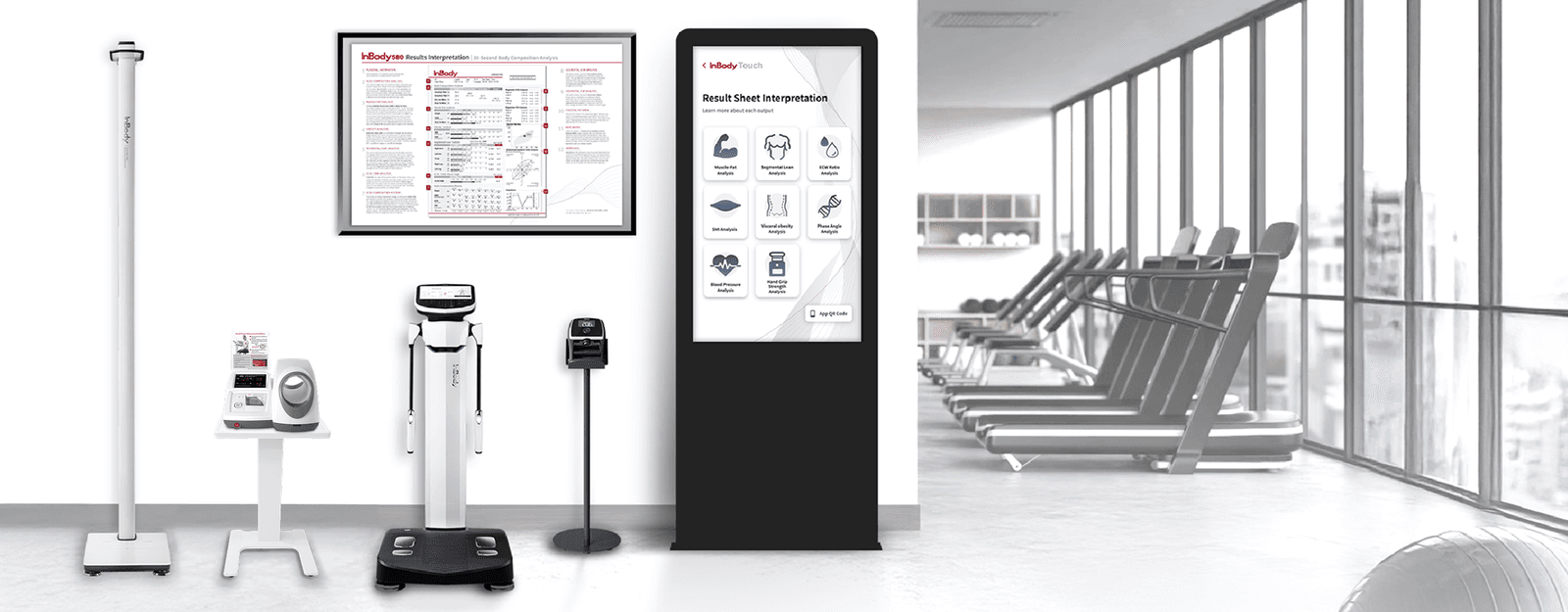

The InBody 570 in practice with BSM 170 stadiometer, InBody mat, printer, and ottoman
1
Carpet

Stand on the carpet after removing your shoes and wiping your feet with the InBody Tissue.

2
Ottoman

Testing on the InBody 570 is simple and non-invasive. Sit on the ottoman to remove your socks and shoes. Use the InBody Tissue to wipe down your feet and increase conductivity.

3
Height Measurement

Use the BSM-170 stadiometer to find the exact height of the user. This information is needed for accurate body composition testing.

4
Voice Guidance System

Users can test with or and without a trained professional. The InBody 570 provides step-by-step instructions for a user to see and hear.

5
Hand Electrodes

Grab the hand electrodes and stand up straight. Place thumbs on the top of the oval electrodes and wrap fingers around the handle. Extend arms downwards and away from the torso, as shown on the InBody 570’s screen.

6
Feet Electrodes

Align heels with the rear, round electrodes and point toes forward so the feet align with the sole electrodes. Do not move until the unit provides new directions.

7
Printer

The InBody Result Sheet will automatically print once the 45-second InBody 570 test is complete. Use Lookin’Body Web to upload all InBody Tests to a computer for efficient data management.

8
Blood Pressure Monitor

The BPBIO 320S is a stand-alone blood pressure monitor that integrates with your InBody unit to provide biometric and body composition results for your clients.

Product Specifications
Product Dimensions
17.7 x 19.3 x 11.2 ( L x W x H ) : in
Stand Dimensions
15 x 18.1 x 32.3 ( L x W x H ) : in
Measurement Method
Oscillometric
Display Unit
1mmHg
Test Duration
45 seconds
Measurement Range
0 – 300mmHg (Pressure)
30 – 240bpm (Pulse)
Product Weight
20 lbs
Database
Stores results for the last 5 measurements
Warranty
1 Year Manufacturer’s Warranty
Power Source
AC 100 – 240V, 50/60Hz
Display Type
7-Segment LED (Systolic, Diastolic, Time, Pulse)
Printer
High-speed thermal printer
Accuracy
± 2mmHG (Pressure), ± 1.5% (Pulse)
Cuff Size
Arm circumference: 7 – 16 inches
Outputs
Systolic Blood Pressure, Diastolic Blood Pressure, Mean Arterial Pressure, Pulse Pressure, Pulse, Rate Pressure Product
Dual Safety System
[START/STOP] button: If the air pressure exceeds 300mmHg, the cuff will automatically deflate.
[EMERGENCY] button: The cuff will quickly deflate regardless of the pressure.
Type of Result Sheets
3-line high-speed printing or graph printing 6-line high-speed printing or graph printing Last 5 measurements printing
