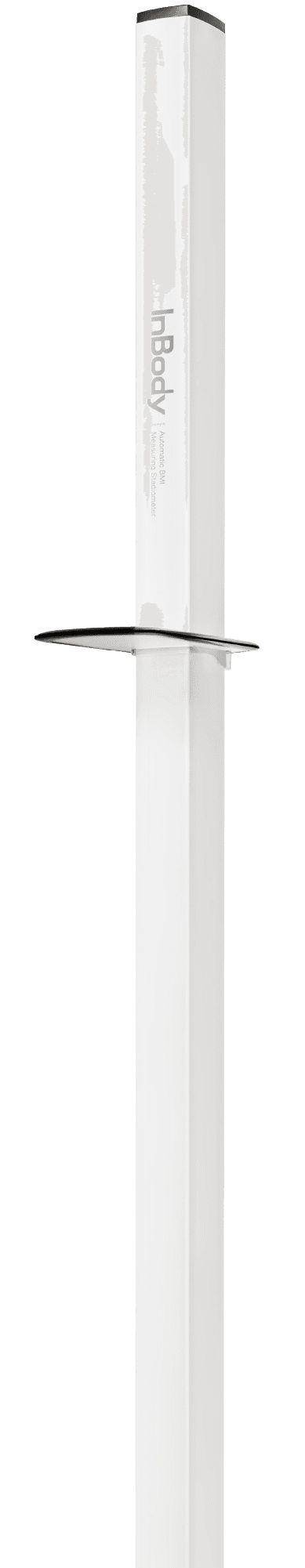

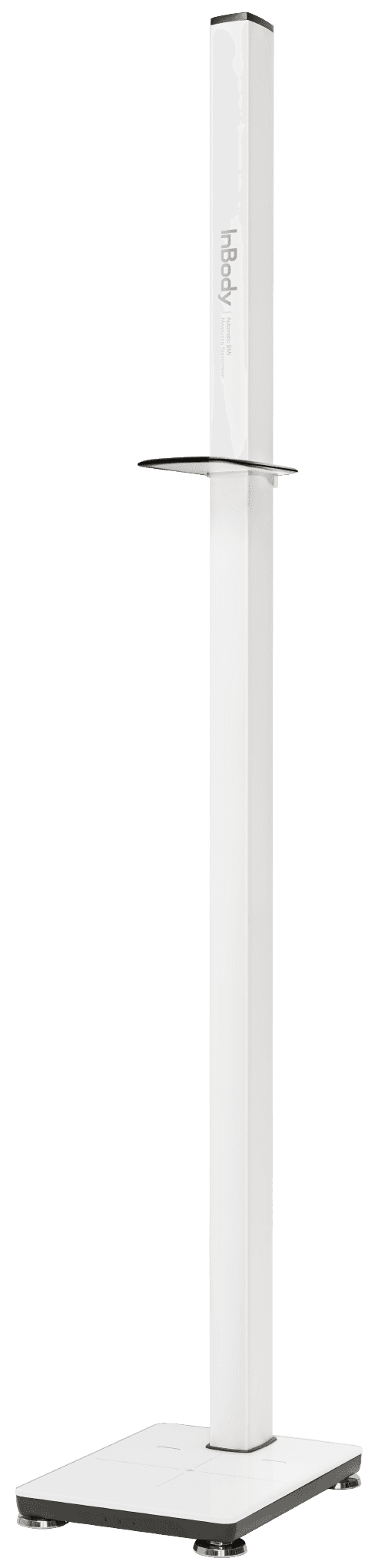

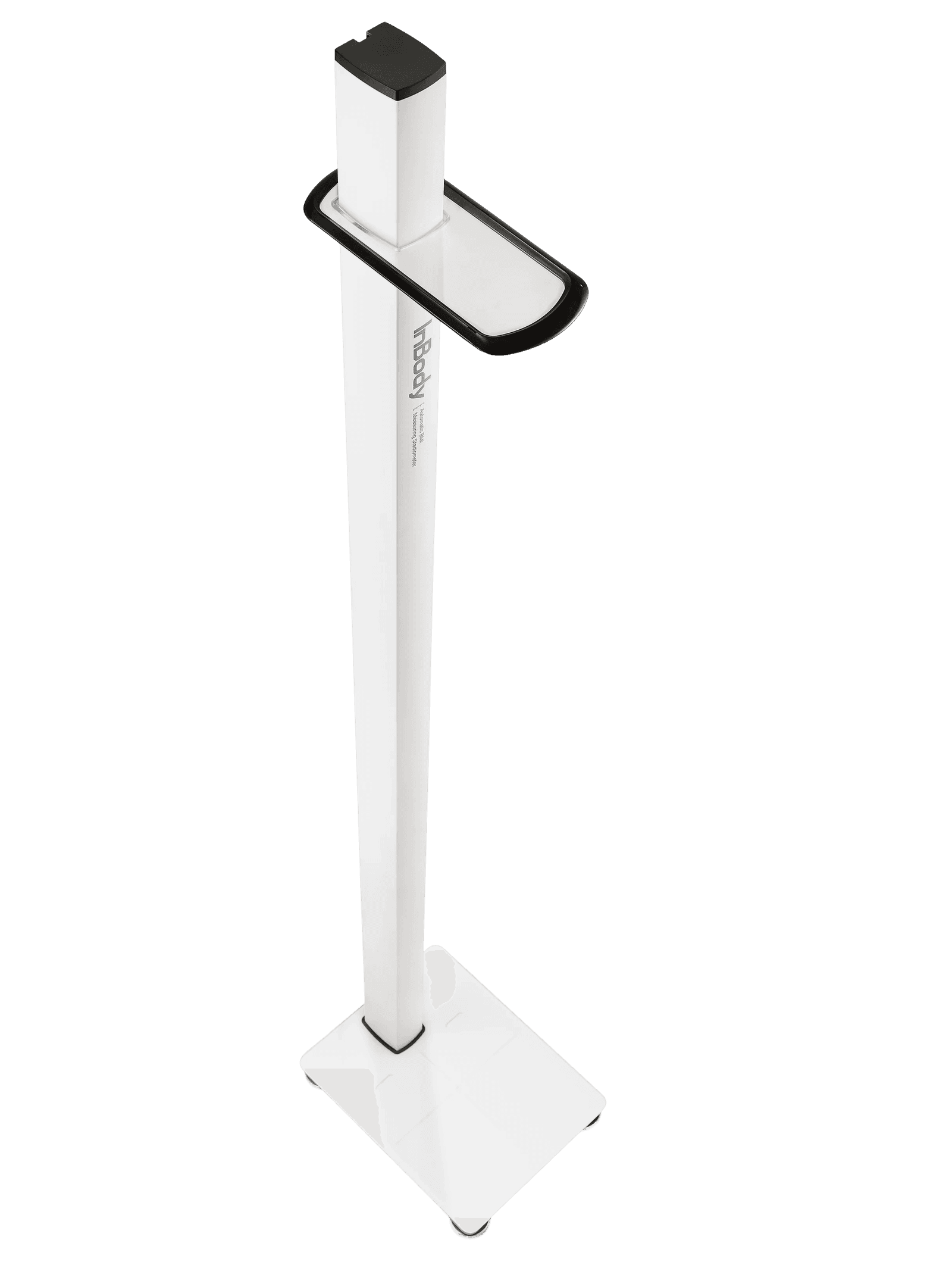

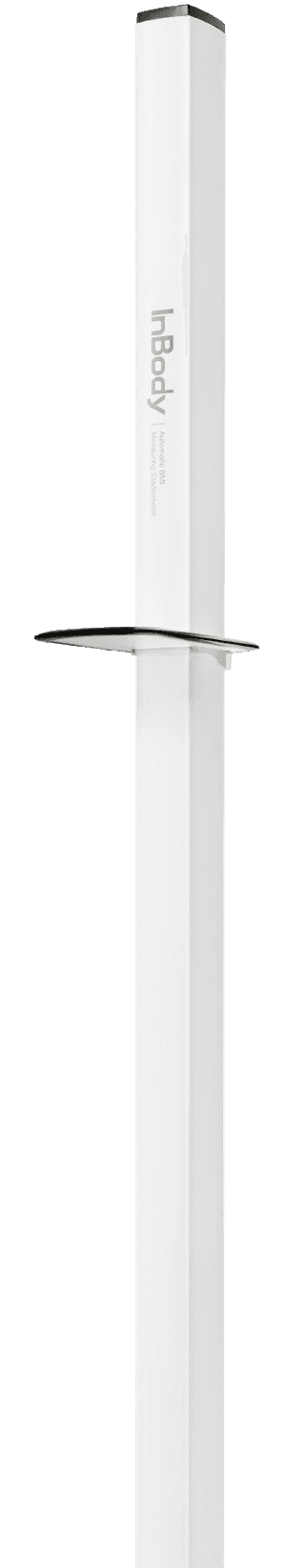

The BSM 270B Stadiometer is a contact-free measurement solution. A fully automatic digital stadiometer that integrates with InBody’s line of body composition analyzers, it delivers accurate height, weight, and BMI measurements.
The BSM 270B Stadiometer is a contact-free measurement solution. A fully automatic digital stadiometer that integrates with InBody’s line of body composition analyzers, it delivers accurate height, weight, and BMI measurements.
Easy to Use
The user-friendly design enables quick, no-contact measurements.
Enhances Testing Accuracy
Removes the guesswork from manual height measurement, correctly measuring height and weight for more precise body composition test results.
Enhances Testing Accuracy
Removes the guesswork from manual height measurement, correctly measuring height and weight for more precise body composition test results.
Transfers Data Instantly
Bluetooth capability allows you to instantly transfer outputs to
InBody professional body composition analyzers.
turn on the device.
measure your weight.
to measure your height.
turn on the device.
measure your weight.
to measure your height.
Easy to Use
The user-friendly design enables quick, no-contact measurements.
Enhances Testing Accuracy
Removes the guesswork from manual height measurement, correctly measuring height and weight for more precise body composition test results.
Transfers Data Instantly
Bluetooth capability allows you to instantly transfer outputs to InBody professional body composition analyzers.

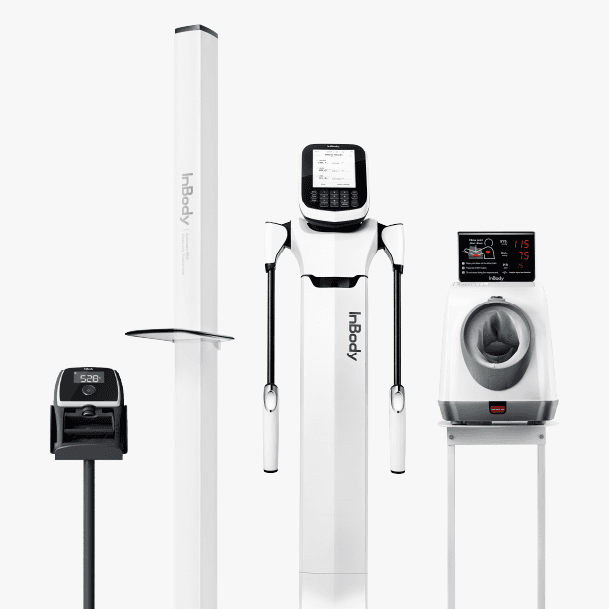

InBody Ecosystem Integration
Utilize the BSM 270B as a stand-alone device or use Bluetooth to pair it with an InBody professional body composition analyzer for seamless, error-free body composition testing.
The BSM 270B is compatible with the InBody 270, InBody 570, InBody 770, InBody 970, and BWA 2.0.
Simple Operation
1
Press the power button to turn on the device.
2

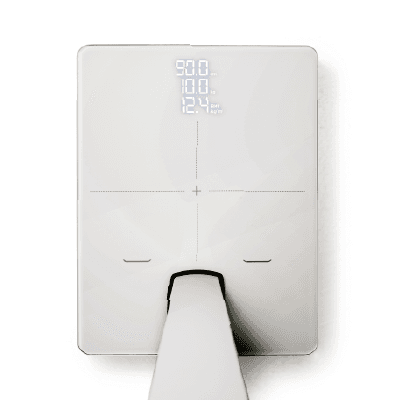

Step onto the footplate to measure your weight.
3

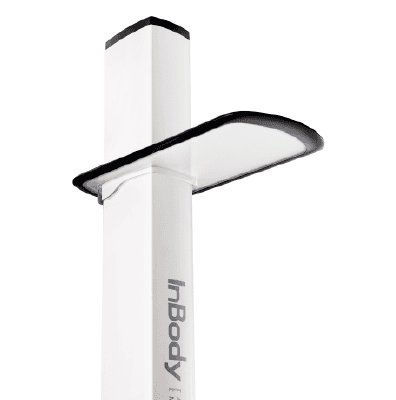

Allow the head bar to adjust itself to measure your height.
InBody Ecosystem Integration
Utilize the BSM 270B as a stand-alone device or use Bluetooth to pair it with an InBody professional body composition analyzer for seamless, error-free body composition testing.
The BSM 270B is compatible with the
InBody 270, InBody 570, InBody 770,
InBody 970, and BWA 2.0.
OUTPUTS:
Height, Weight, BMI
EQUIPMENT WEIGHT:
30.8 lb
WARRANTY:
1 Year Manufacturer’s Warranty
MEASUREMENT UNITS:
Select between “lb/in” and “kg/cm”
STORAGE ENVIRONMENT:
14-158°F, 30-75%, 50-106 kPa
RESULTS DISPLAY:
LCD screen
HEIGHT MEASUREMENT RANGE:
2’11” – 6’6.7″
OPERATING ENVIRONMENT:
50-104°F, 30-75%, 70-106 kPa
DIMENSIONS:
14.0 x 17.9 x 85.4 (W x L x H) : in
WEIGHT RANGE:
22.1 – 440.9 lb
EXTERNAL INTERFACE:
Bluetooth
COMPATIBLE DEVICES:
InBody 270, InBody 570, InBody 770, InBody 970, BWA 2.0
POWER:
Power input: AC 100-240V, 50/60Hz, 1.2A
Power output: DC 12V, 3.0A/DC 12V, 3.33A
