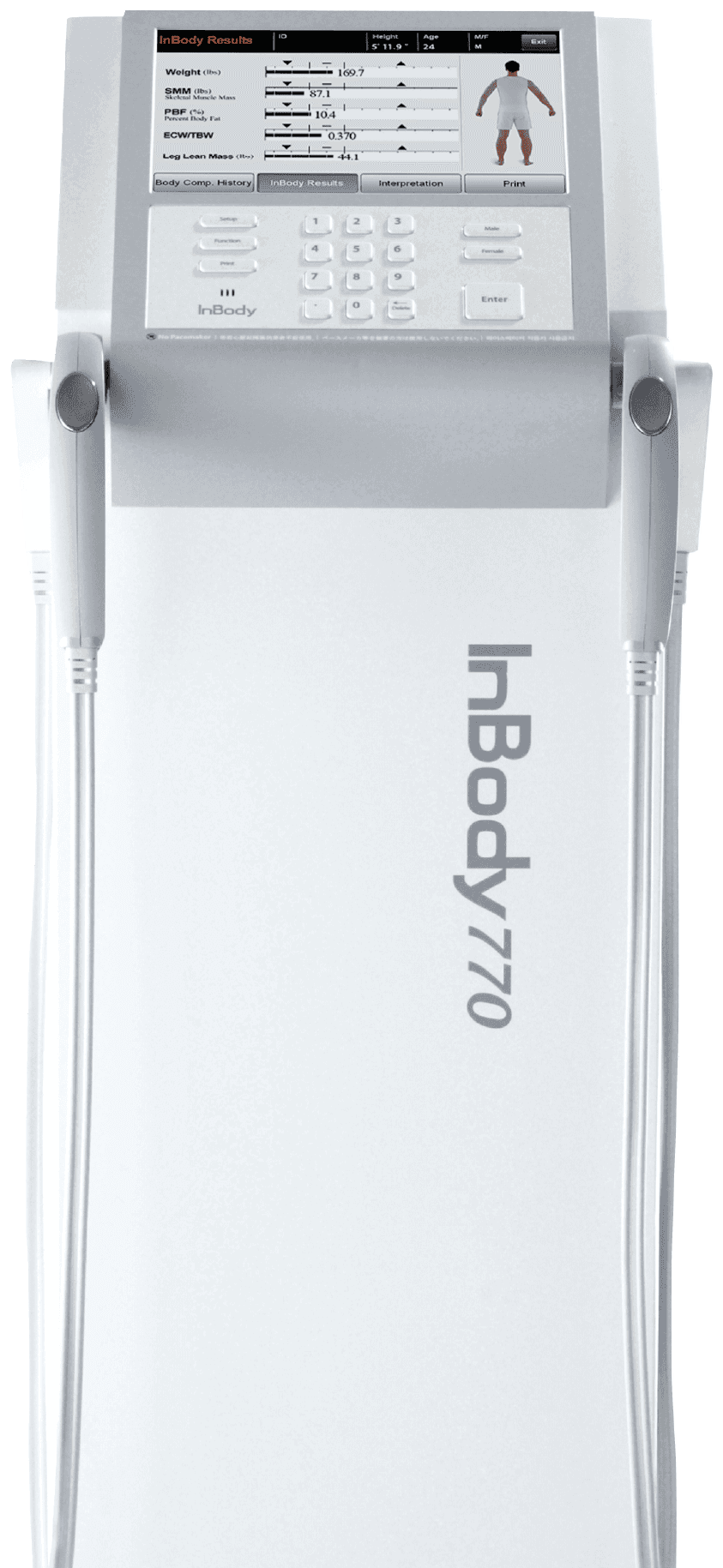

InBody 770

The research-grade InBody 770 body composition and body water analyzer goes beyond traditional body composition analysis and takes a deeper look into body water. This model offers two types of results sheets: body composition and body water.

View validation studies

What’s different about the InBody 770 body composition and body water analyzer?

60 Second Tests

Quickly measure fat mass, muscle mass, and body water levels in less than a minute. No dunking. No pinching. No discomfort. Simply stand on the device and hold the hand electrodes.

No Estimations

Only impedance is used to determine your body composition results; no empirical estimations such as gender and age are used or required to predict your body composition.

Cloud Software

Automatically save all the data from InBody units to Lookin’Body Web, InBody’s cloud database management system. Easily view and manage client’s results and see their progress anytime, anywhere.

“The other part is that the University that we do work with who is constantly researching was able to validate it (InBody), in some studies that they did, that it’s valuable tool. When they compared it to some of the other more expensive methods, they said it was right along with them.”

Mark FitzgeraldAnaheim Ducks

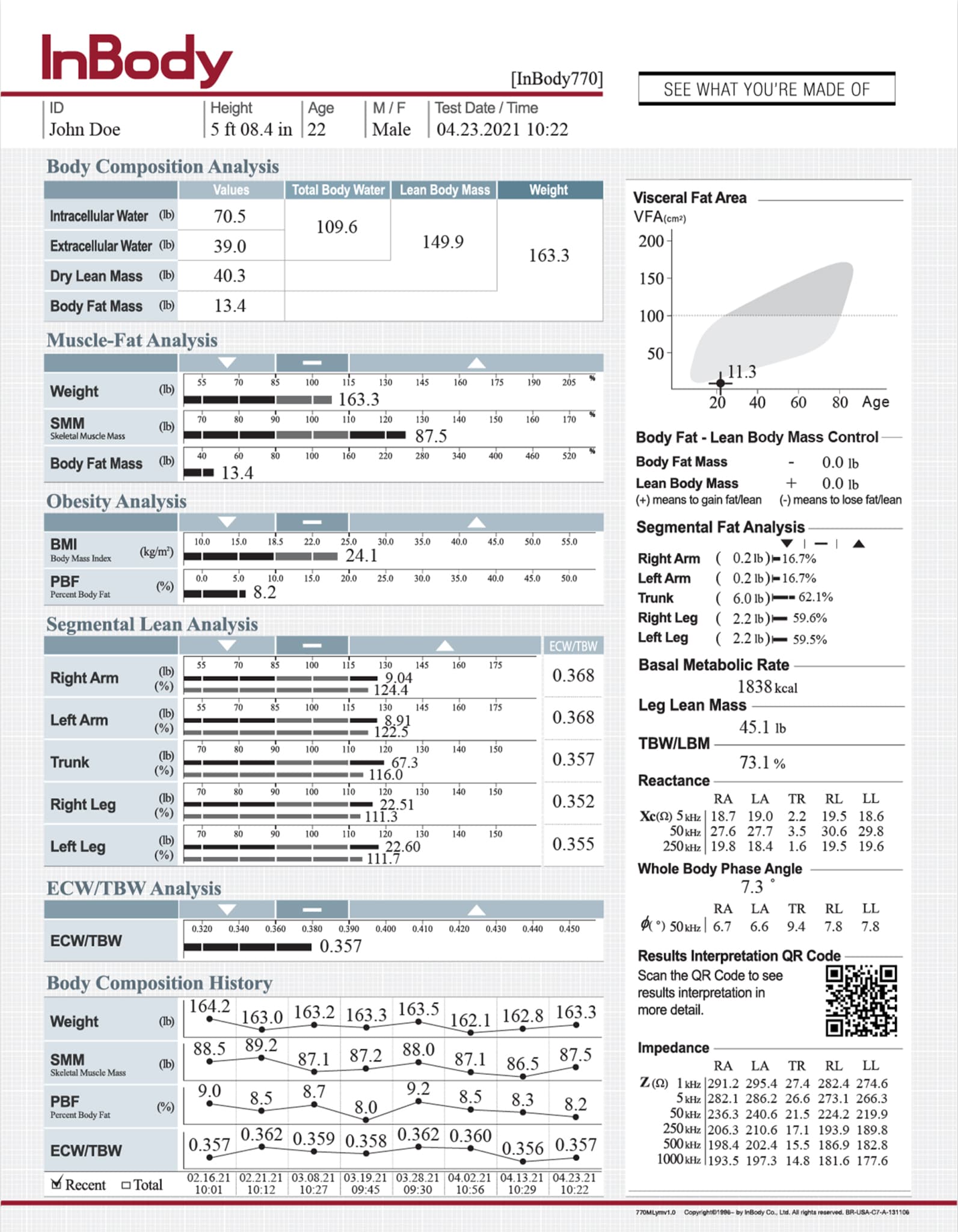

Explore the InBody 770 Result Sheet

Each InBody Test will print out a full-page results sheet detailing the muscle, fat, and water values of the user. The InBody 770 provides the most extensive analysis of the body out of the InBody line because it provides two result sheets.

Want to know how to use this data in practice? Download our free guide here.

Research Outputs

Use Whole Body Phase Angle and Segmental Phase Angle to determine the integrity of a user’s cells. This output is ideal for rehabilitation and disease management in the medical field.

Body Water Result Sheet

Understand Body Water Composition and Segmental Body Water Analysis to monitor trends and detect unusual shifts in fluid distribution that can result from injury, aging, obesity, and other health factors.

Tbe InBody 770 result sheet segmental lean analysis and whole body phase angle highlited The InBody 770 body water result sheet segmental body water and ecw/tbw analysis highlited

See how businesses utilize the InBody

Watch testimony videos of how doctors, fitness professionals, and health experts alike have used InBody to validate their programs and increase member retention.

Your Business and the InBody 770

What would it look like to own one in your facility?

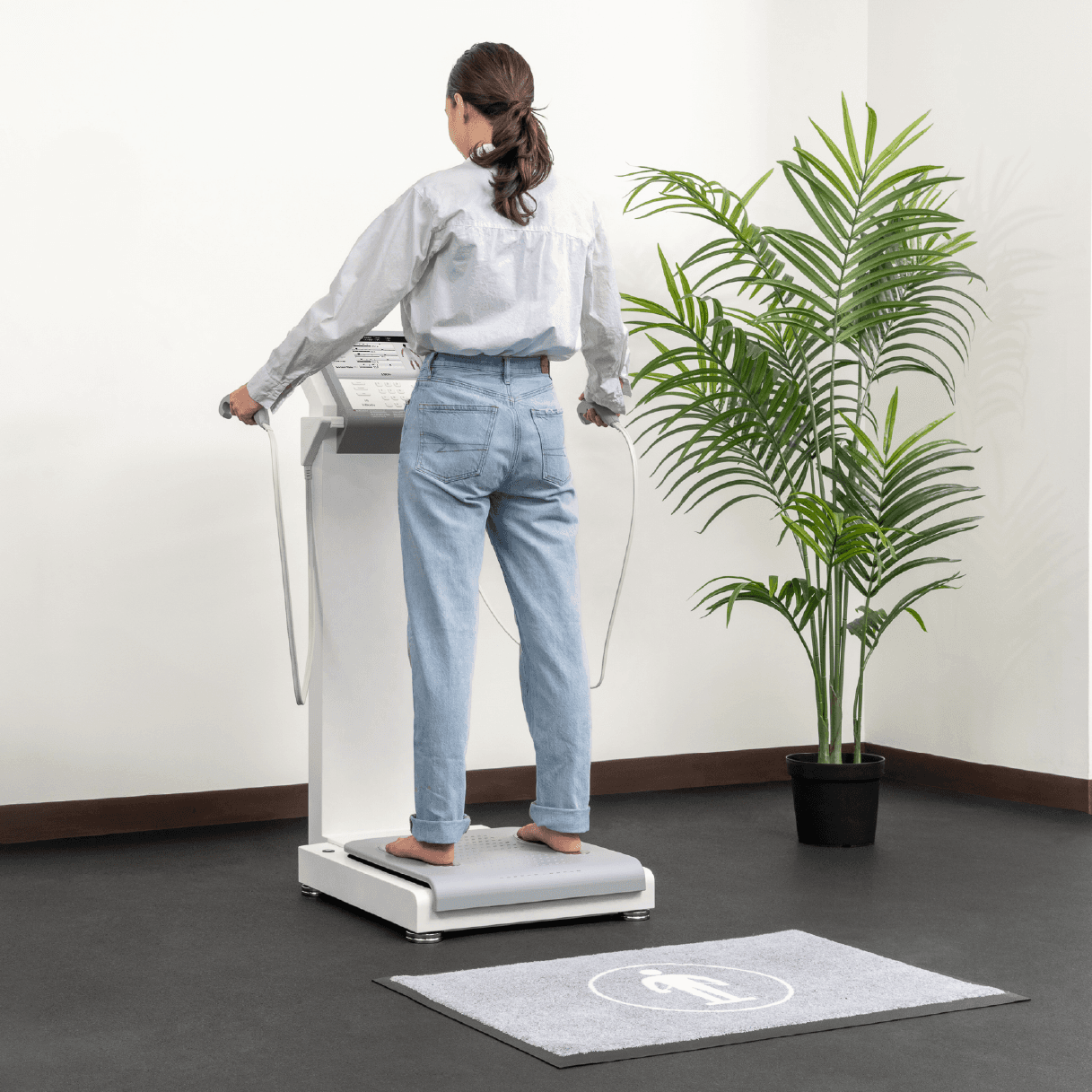

The InBody 770 in practice with BSM 170 stadiometer, InBody mat, printer, and ottoman

Stand on the carpet after removing your shoes and wiping your feet with the InBody Tissue.


Testing on the InBody 770 is simple and non-invasive. Sit on the ottoman to remove your socks and shoes. Use the InBody Tissue to wipe down your feet and increase conductivity.

Height Measurement

Use the BSM-170 stadiometer to find the exact height of the user. This information is needed for accurate body composition testing.

Voice Guidance System

Users can test with or and without a trained professional. The InBody 770 provides step-by-step instructions for a user to see and hear.

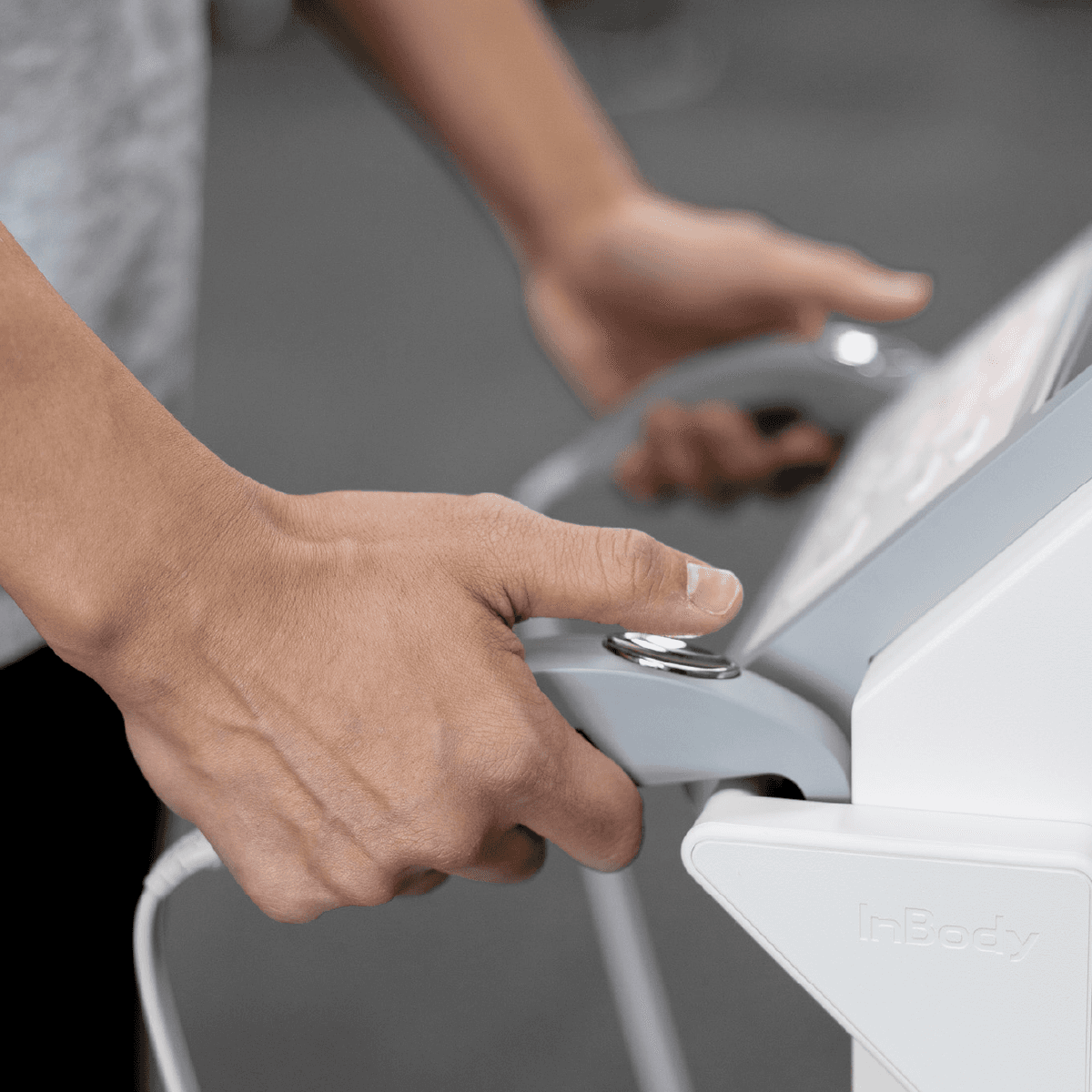

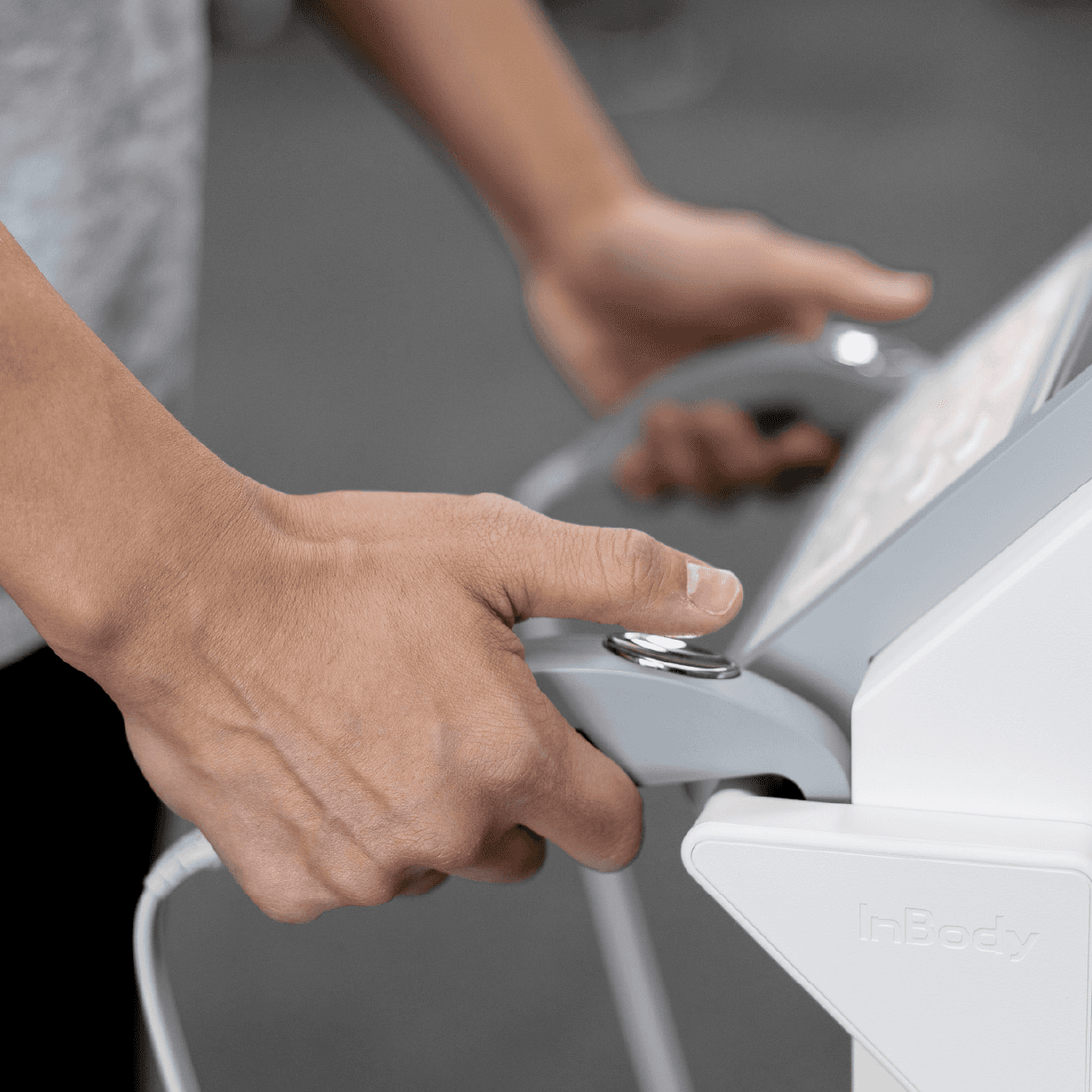

Hand Electrodes

Grab the hand electrodes and stand up straight. Place thumbs on the top of the oval electrodes and wrap fingers around the handle. Extend arms downwards and away from the torso, as shown on the InBody 770’s screen.

Feet Electrodes

Align heels with the rear, round electrodes and point toes forward so the feet align with the sole electrodes. Do not move until the unit provides new directions.


The InBody Result Sheet will automatically print once the 60-second InBody 770 test is complete. Use Lookin’Body Web to upload all InBody Tests to a computer for efficient data management.

Validation Study

"The InBody 3.0 was used to assess fluid measures in both hemodialysis and peritoneal dialysis patients in order to guide dry weight determination. Through the use of multiple frequency technology, the InBody is able to distinguish between the intracellular and extracellular compartments. This study shows the value of using these objective measures and the ratios between fluid compartments in order to establish a goal weight."

Tsai (2004) Evaluation of ideal body weight in dialysis patients through bioelectrical impedance analysis

Read the study

Get in touch

Speak to an InBody representative to see how you can jumpstart your business with an InBody 770 body composition and body water analyzer!

Do you live outside the United States? Please direct your inquiry here.

Product Specifications

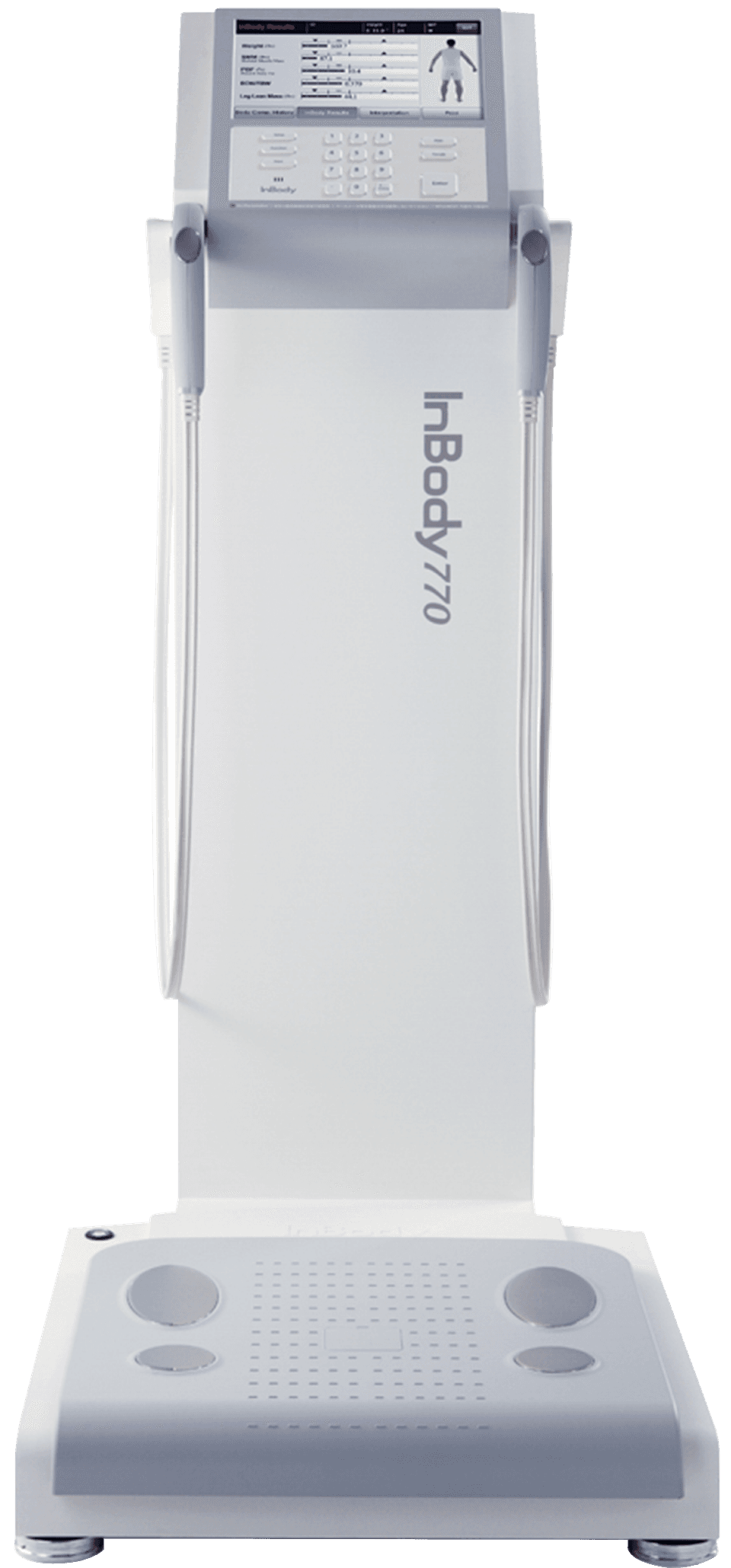

The InBody 770 dimensions specifications
20.7 x 33.6 x 46.3 (L x W x H ) : in
1, 5, 50, 250, 500, 1000 kHz
Test Duration
60 seconds
Weight Range
22-551 lbs
Age Range
3-99 years
Height Range
3 ft 1.4 in-7 ft 2.6 in
Equipment Weight
83.8 lbs
100,000 results
(if member ID is utilized)
Body Composition Result Sheet, Body Water Result Sheet (Optional), USB Thumb Drive, InBody Tissue
1 Year Manufacturer’s Warranty
Compatible Printers
Laser/Inkjet PCL 3 or above and SPL
30 impedance measurements, 6 frequencies at each of the 5 segments (Right Arm, Left Arm, Trunk, Right Leg, Left Leg)
Additional Features
EMR Integration (HL7 Ready), Barcode Scanner Integration, Lookin’Body 120 and Lookin’Body Web Compatible, Touchscreen, Voice Guidance System, Wi-Fi/Bluetooth Connectivity, Security Access Code
Standard Outputs
Weight, Total Body Water, Dry Lean Mass, Lean Body Mass, Body Fat Mass, Skeletal Muscle Mass, Body Mass Index, Percent Body Fat, Segmental Lean Analysis, Body Composition History, Body Fat-Lean Body Mass Control, Basal Metabolic Rate, Impedance at each segment/ frequency
Additional Outputs
Intracellular Water, Extracellular Water, ECW/TBW Analysis, Visceral Fat Level, Segmental Fat Analysis, Visceral Fat Area, Segmental Body Water Analysis, Segmental ECW/TBW Analysis, Segmental ICW Analysis, Segmental ECW Analysis, Leg Lean Mass, TBW/LBM, Reactance, Whole Body and Segmental Phase Angle
